MCD 00515001 RR5-MAX PRO Spec (not RTR)

MCD, 1/5 OFF ROAD
1,499.99
MCD 515001
In stock
+
  • Pinterest
The Extended Winner

The RR5 MAX, has improved handling and driving stability that come from the extended V5 chassis. The RR5 MAX is equipped with the extended fully aerodynamic body for an improved down force on the front and rear of the RR5-Max.

Order codes:

00515001 RR5-MAX PRO Spec

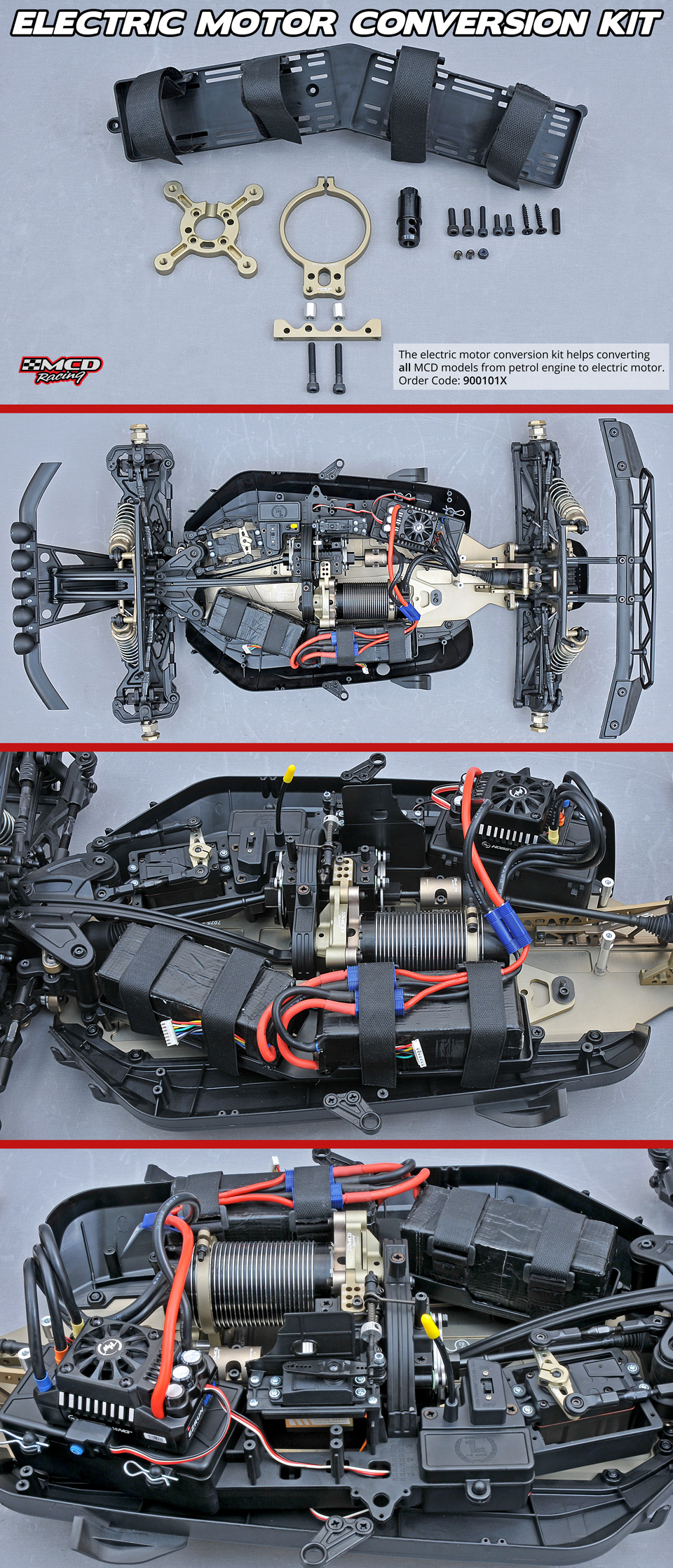

00515201 RR5 Max E-Chassis Pro

  • Top of the line racing off-road Buggy
  • Easy assembly/dis-assembly
  • Easy maintenance
  • Centralized and compacted parts layout on chassis
  • Elite racing design ultra-durable high performance parts
  • Fifth generation MCD chassis & suspension arms
  • Sophisticated full-time 4WD Shaft Driven mechanics
  • Ultra strengthened chrome drive shaft and axle
  • Easy gear mesh system
  • Easily removable one-piece electronics tray
  • CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis
  • Strengthened long wishbones
  • Spare softer wishbones
  • Solid and durable side guards
  • Easily removable composite front, rear and center diff houses
  • Ultra durable front and rear adjustable brake system
  • Rear-brake only servo slot
  • 8mm light-weight 7075 air craft alloy front and rear towers
  • Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
  • Anodized alloy shock bodies
  • Ultra hardened steel transmission gears
  • No-Stress-Effect polyamide front bumper and rear diffuser
  • Ultra durable steel ball cup-joints
  • CNC machined anodized alloy engine carrier
  • Double ball bearing anti-roll bars
  • Planetary differentials
  • Super-Cooling V5 air ventilation system
  • Viper Racing Air Filters with dual layer foam and thermoplastic hose
  • Barracuda G performance exhaust
  • Engine Cylinder Heatsink (Optional)
  • Adjustable CG
  • Adjustable weight distribution
  • Molded fuel tank with shake absorbing separators
  • Fully composite body accessories
  • Alloy hinge-pin holders
  • Improved front stiffener
  • Drive and shock shaft boot
OFF-ROAD COMPARISON CHART
Part (Order Code) Competition Pro FT-R Ultimate
  Short Chassis Long Chassis (MAX)
Chassis 5083 Alloy - Short 7075 Alloy - CNC Machined - Anodized (400103A) 7075 Alloy - CNC Machined - Anodized (400103A) 7077 Alloy - CNC Machined - Anodized (400103A)
Barracuda G Performance Exaust Set (750601X) OPT STD STD STD
Clutch Bell Carrier Composite Alloy (415502A) Alloy (415502A) Alloy (415502A)
Engine Clutch House Alloy (415701A) OPT OPT OPT STD
DBB Ackerman Plate Standard 8mm (380203A) OPT STD STD STD
Front Diff. Planetary F/R Planetary F/R LSD F/R (200101X) LSD F/R (200103X)
Center Diff. Planetary Center Planetary Center LSD Center (200201X) LSD Center (200203X)
Rear Diff. Planetary F/R Planetary F/R Planetary F/R LSD F/R (200103X)
Diff. Case Composite Composite Steel Alloy (200402A)
Front Diff. House Inner Composite Composite Composite Alloy (415102A)
Rear Diff. House Inner Composite Composite Alloy (415102A) Alloy (415102A)
Center Diff.Holder Set Composite Composite Alloy (415202A) Alloy (415202A)
W5 MAX Front Wishbone Alloy (300104A) OPT OPT STD (W5 Only) STD (W5 Only)
Front Wishbone Alloy for 599 Wheelbase (300108A) OPT OPT STD (RR5 Only) STD (RR5 Only)
Front Hub L/R Composite Composite Alloy (300603A) Alloy (300603A)
Rear Hub L/R Composite Composite Alloy (300604A) Alloy (300604A)
L/R Caster Block Composite(6°) Composite(6°) 0° Alloy (300704A) 0°, ±4° Alloy (300705X)
Pro-Bite Racing Clutch (290101X) OPT OPT OPT STD
Turnbuckle Set Steel Steel Steel Alloy (301204X)
Shock Absorbers - Front Composite Alloy (320103X) Alloy (320103X) Alloy (320107X)
Shock Absorbers - Rear (RR5) Composite Alloy (320202X) Alloy (320202X) Alloy (320205X)
Shock Absorbers - Rear (W5) Composite Alloy (320103X) Alloy (320103X) Alloy (320107X)
Upper Shock Absorber Joint Cup Composite Composite Composite Alloy (320502A)
Lower Shock Absorber M5 Joint Composite Composite Composite Alloy (320503A)
M8 Upper Wishbone Rose Joint L/R Thread Composite Composite Alloy (340102A) Alloy (340102A)
Servo Saver Upper Arm Composite Composite Composite Alloy (380102A) & Composite
Steering Servo Turnbuckle Steel Steel Steel Alloy (381002A)
Brake Plate Composite Composite Alloy (415302A) Alloy (415302A)
Lay Shaft Carrier Composite Alloy (415402A) Alloy (415402A) Alloy (415402A)
Rear Upper Stiffener Alloy (446201A) OPT* OPT* STD STD
Front Stiffener Composite Composite Composite Alloy (445102A)
Rear Stiffener Composite Alloy (445202A) Alloy (445202A) Alloy (445202A)
Upper Stiffener Alloy OPT** OPT** Alloy (446101A) Alloy (446101A)
Diff.House-Stiffener Spacer Composite Composite Alloy (460102A) Alloy (460102A)
Carburetor / AirFilter Venturi Composite Composite Alloy (725302A) Alloy (725302A)
Engine Insulator Alloy G230-G290 (726002A) OPT OPT OPT STD
Radio/Servo Tray - Hydraulic Brake Compatible (930301X) OPT OPT OPT STD
EFRA Air Box Intake Silencer (725801X) OPT OPT OPT STD
Brake Disc Spring Steel Spring Steel Light Weight ABS (260102S) Light Weight ABS (260102S)
Front Wishbone Holder Set Composite Alloy (300203A) Alloy (300203A) Alloy (300203A)
Rear Wishbone Holder Set Composite Alloy (300303A) Alloy (300303A) Alloy (300303A)
Anti-Roll Bar Set F/R 3.5mm (360101X) OPT STD STD STD
XL CCD Axle (935601X) OPT OPT OPT STD
W5 Front Tower (430104A) Alloy 5mm Alloy 5mm Alloy 5mm Alloy 5mm
W5 Rear Tower (430204A) Alloy 5mm Alloy 5mm Alloy 5mm Alloy 5mm
RR5 Front Tower Alloy 5mm Alloy 8mm (430101A) Alloy 8mm (430101A) Alloy 8mm (430101A)
RR5 Rear Tower Alloy 5mm Alloy 8mm (430201A) Alloy 8mm (430201A) Alloy 8mm (430201A)
*Required for assembly: 446201A, 415402A and 415302A
**Required for assembly: 446101A and 446301A






























Length : 800 mm
Width : 475-480 mm
Overall height : 325 mm
Ground clearance : 25-85 mm
Weight : 12.8-13kg (depending on equipment installed)
Wheelbase : 610-620 mm (adjustable)
Trackwidth

: 410mm

Chassis material : 7075 Anodize Alloy (4mm)
Suspension : Non-parallel non-line independent
Caster angle : 8°(6° - 14° adjustable)
Camber angle : Adjustable
Toe angle : In-board and out-board adjustable
Anti-squat : 3°(adjustable)
Rear-squat : 5°
Kick-up : 8°-10°(adjustable)
Shock absorber : Coil-over Oil-filled Internal High Pressure Cell
Transmission : Full-Time 4WD 3-Diff Shaft Driven
Gear ratio : 9.14:1 (18 available 7,44:1 to 10,67)
Tyre size : 65 x 160 mm (Astro-Max)

Order code: 00515001 RR5 Max Rolling Chassis Pro
Recommended Retail Price: 1,449 EUR


00515201 RR5 Max E-Chassis Pro
Recommended Retail Price: 1,449 EUR





Some parts (engine and radio gear) shown on the pictures are for photographing purposes only and not included in the car.
The Company reserves the right, at its discretion, to change and modify some properties of products such as colors of wheels, tire patterns, compound of tires without notification.
Required for operation (not included): Engine, 2 ch. Radio, steering servo and throttle/break servos
Cars come with a basic decal set, they may differ from the images on this page.

MANUFACTURER :
MCD
TYPE OF VEHICLE :
  • 1/5 OFF ROAD
